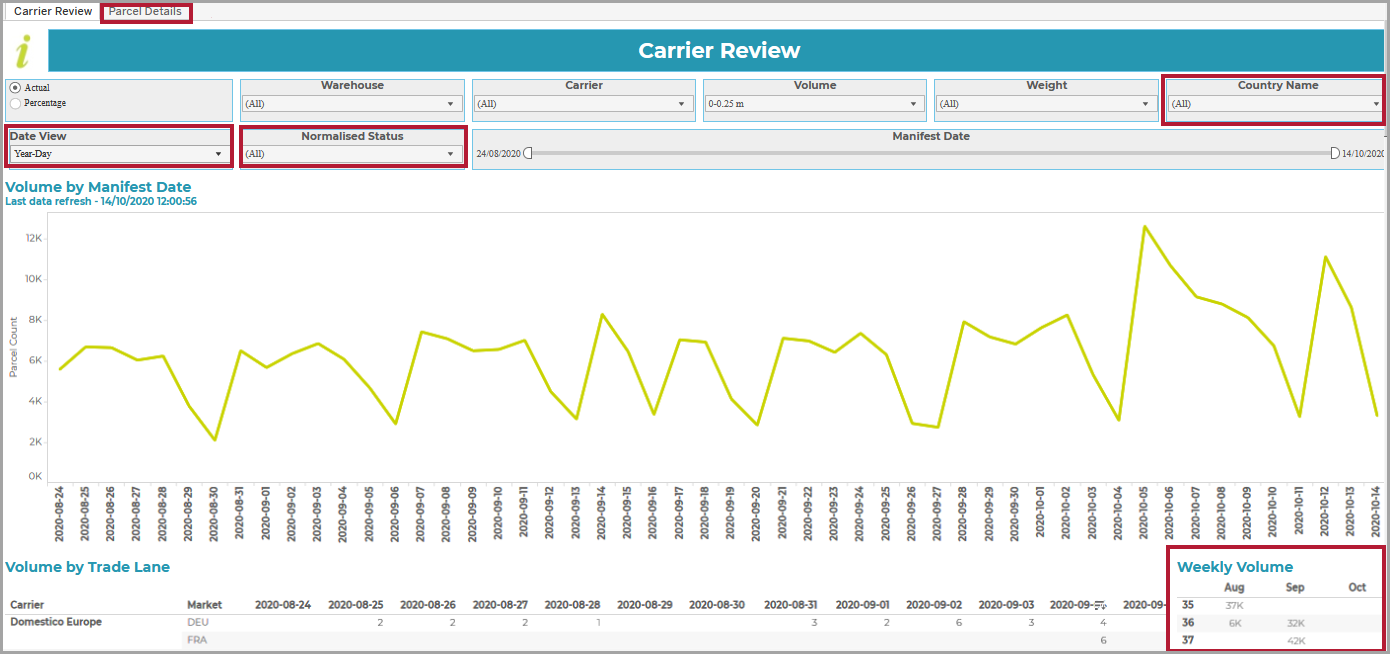

In addition to the global filters previously described, the report provides the filters and switches highlighted in the following screenshot:
For the population of the Parcel Details tab shown at the top of the screen, refer to Drilling through to the Parcel Details tab.
This filter allows you to set the country for which content is to be displayed:
All countries in the current dataset are selected by default. To select the one(s) for which you wish to display data, first deselect All (so that (None) appears in the filter). Then select the one(s) required. To select a particular country, type part or all of the name at the top of the filter box (to restrict the display). Then tick it.
Once you click away from the box, the graph, trade lanes and weekly, 'service group' and market 'slicers' are updated automatically in line with your selection.
The Date View switch allows you to set the time period for the graph:
You can switch between showing the data by Year-Day (the default), Year-Month, Year-Week (i.e. by ISO week), or Weekday.
This filter allows you to set the status(es) for which content is to be displayed;
All statuses are selected by default. To select the one(s) for which you wish to display data, first deselect All (so that (None) appears in the filter). Then select the one(s) required. To select a particular status, type part or all of the name at the top of the filter box (to restrict the display). Then tick it.
This 'quick filter' allows you to select an individual ISO week for which you wish to show data:

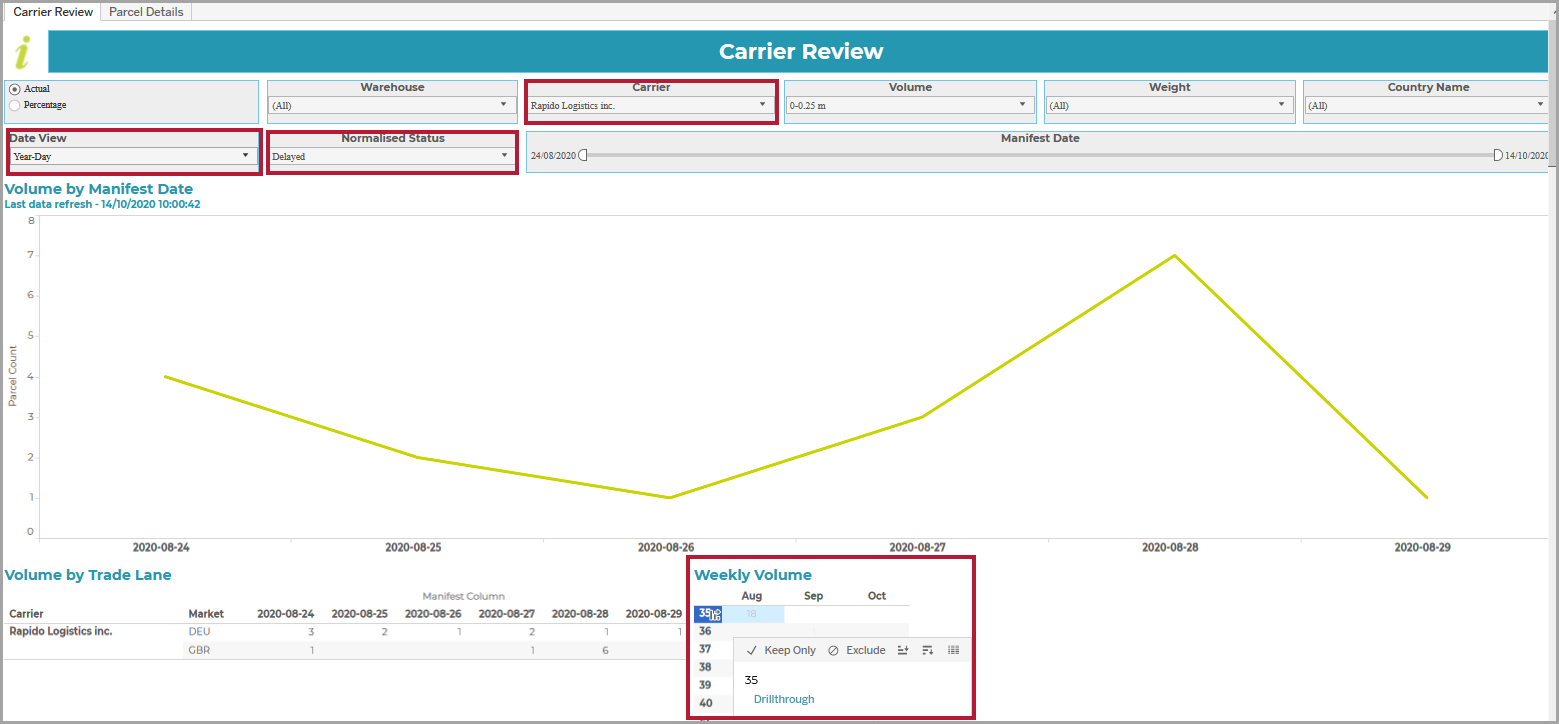

When you click on the week, the report data is filtered to show only the results for the particular week, e.g.

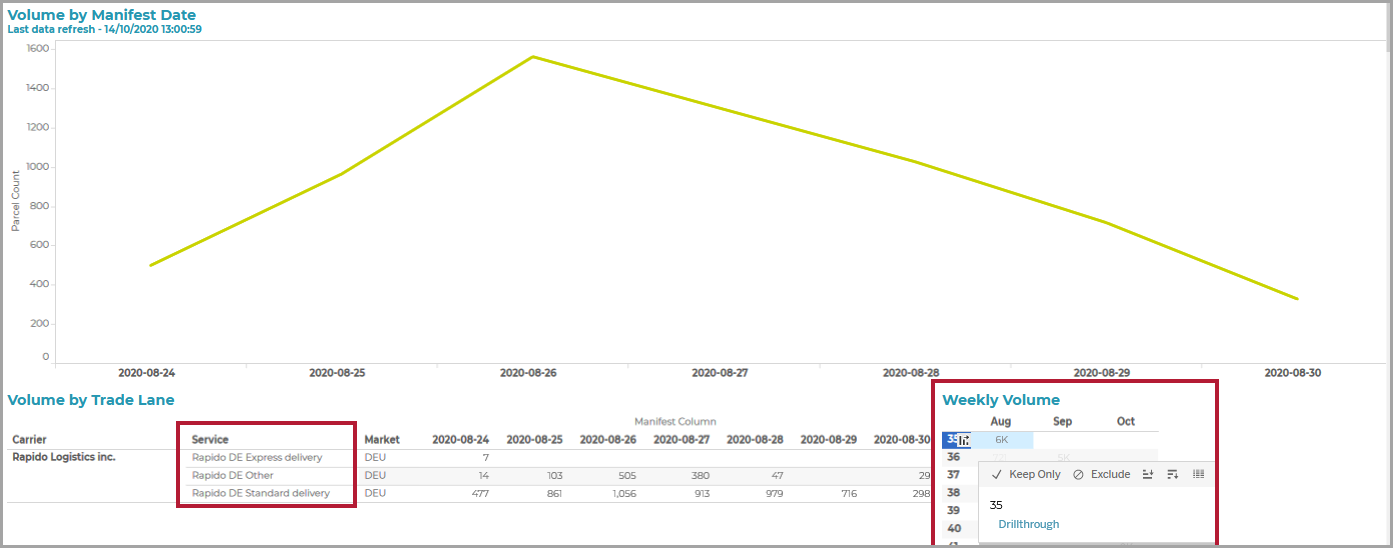

If you wish to expand the carrier to break the results down by individual carrier service, hover over the carrier and click the + symbol that appears next to it. Click the - symbol to collapse the results back to just the carrier.
You simply click again to clear the filter. To clear a multiple selection, click multiple times. You can also select Undo/Redo to clear a filter.
For the Keep Only and Exclude options that are displayed when you hover over the filter, refer to the Keep Only/Exclude switch.
You will note a Drillthrough link at the bottom of the 'quick filter' when you hover over it. Clicking on this populates the Parcel Details tab with details of the associated parcels so that you can look them up on your Metapack shipping platform.
