despatchConsignmentWithBookingCode

This allocation method creates a single consignment, allocates it using a booking code, and returns Base64-encoded documentation.

How to submit a request

Proceed as follows:

  1. If you have not already done so, open a new project using the WSDL AllocationService.xml.

  2. Create a new request under despatchConsignmentWithBookingCode.

  3. Enter the authorisation for the request.

  4. Create a new single consignment. As a minimum, the following must be specified:

    1. The consignmentLevelDetailsFlag.

    2. The consignmentValue if the consignmentLevelDetailsFlag is set to true. However, if this flag is set to false, then the parcelValue is required instead (refer to the Parcels Array).

    3. The consignmentWeight if the consignmentLevelDetailsFlag is set to true. However, if this flag is set to false, then the parcelWeight is required instead (refer to the Parcels Array).

    4. The maxDimension if the consignmentLevelDetailsFlag is set to true. However, if this flag is set to false, then it is calculated automatically from the dimensions of each parcel (refer to the Parcels Array).

    5. The orderNumber.

    6. The parcelCount.

    7. 'n' items in the Parcels Array if 'n' is the parcelCount.

    8. The recipientAddress.

    9. The recipientName.

    10. The senderAddress.

    11. The senderCode.

    12. The senderName.

  5. Specify the required bookingCode.

  6. Set calculateTaxAndDuty to false.

  7. Enter the parameters for document generation.

  8. Click Arrow.png to submit the request.

Note

If you are using any form of performance reporting, specifically Ops Reporting and Delivery Intelligence, and you want to view customer delivery data, you should add the committedDeliveryWindow parameter to your API call when creating your consignments (see the following example).

<committedDeliveryWindow xsi:type="ns2:DateRange">
<from xsi:type="xsd:dateTime">2020-11-24T18:30:00.000Z
</from>
<to xsi:type="xsd:dateTime">2020-11-25T18:30:00.000Z</to>
</committedDeliveryWindow>

You know that allocation has been successful once a carrier service has been returned. You can then verify the allocation in the GUI (refer to Allocating an individual Consignment).

Tip

If no carrier service is returned, then you can verify whether any carrier maintenance is required, by either using the GUI Why Not? function or the API Debug Service Methods.

Example Request

The following is a request seeking to allocate an overseas consignment in Imperial Weights and Measures, and return the requisite paperwork

<?xml version="1.0" encoding="UTF-8"?>
<soapenv:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:ser="urn:DeliveryManager/services" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">
   <soapenv:Header/>
   <soapenv:Body>
      <ser:despatchConsignmentWithBookingCode soapenv:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/">
          <consignment xsi:type="typ:Consignment" xmlns:typ="urn:DeliveryManager/types">
                <measurementUnits xsi:type="ns2:MeasurementUnits">
               <length>in</length>
               <weight>lb</weight>
               <volume>oz</volume>
               </measurementUnits>
                <CODAmount xsi:type="xsd:double">0</CODAmount>
                      <CODFlag xsi:type="xsd:boolean">false</CODFlag>
                      <CODPaymentTypeCode xsi:type="soapenc:string" xsi:nil="true"/>
                      <CODSpecialInstruction xsi:type="soapenc:string" xsi:nil="true"/>
                      <CODSurcharge xsi:type="xsd:double">0</CODSurcharge>
                      <alreadyPalletisedGoodsFlag xsi:type="xsd:boolean">false</alreadyPalletisedGoodsFlag>
                      <cardNumber xsi:type="soapenc:string" xsi:nil="true"/>
                      <carrierCode xsi:type="soapenc:string" xsi:nil="true"/>
                     <carrierConsignmentCode xsi:type="soapenc:string" xsi:nil="true"/>
                      <carrierName xsi:type="soapenc:string" xsi:nil="true"/>
                      <carrierServiceCode xsi:type="soapenc:string" xsi:nil="true"/>
                      <carrierServiceName xsi:type="soapenc:string" xsi:nil="true"/>
                      <carrierServiceVATRate xsi:type="xsd:double">0.0</carrierServiceVATRate>
                      <cartonNumber xsi:type="soapenc:string" xsi:nil="true"/>
                      <cashOnDeliveryCurrency xsi:type="soapenc:string">GBP</cashOnDeliveryCurrency>
                      <committedCollectionWindow xsi:type="ns2:DateRange" xsi:nil="true"/>
                      <committedDeliveryWindow xsi:type="ns2:DateRange" xsi:nil="true"/>
                      <consDestinationReference xsi:type="soapenc:string" xsi:nil="true"/>
                      <consOriginReference xsi:type="soapenc:string" xsi:nil="true"/>
                      <consRecipientReference xsi:type="soapenc:string" xsi:nil="true"/>
                      <consReference xsi:type="soapenc:string" xsi:nil="true"/>
                      <consSenderReference xsi:type="soapenc:string" xsi:nil="true"/>
                      <consignmentCode xsi:type="soapenc:string" xsi:nil="true"/>
                      <consignmentLevelDetailsFlag xsi:type="xsd:boolean">false</consignmentLevelDetailsFlag>
                      <consignmentValue xsi:type="xsd:double">30</consignmentValue>
                      <consignmentValueCurrencyCode xsi:type="soapenc:string">GBP</consignmentValueCurrencyCode>
                      <consignmentValueCurrencyRate xsi:type="xsd:double">0.0</consignmentValueCurrencyRate>
                      <consignmentWeight xsi:type="xsd:double">2</consignmentWeight>
                      <custom1 xsi:type="soapenc:string" xsi:nil="true"/>
                      <custom10 xsi:type="soapenc:string" xsi:nil="true"/>
                      <custom2 xsi:type="soapenc:string" xsi:nil="true"/>
                      <custom3 xsi:type="soapenc:string" xsi:nil="true"/>
                      <custom4 xsi:type="soapenc:string" xsi:nil="true"/>
                      <custom5 xsi:type="soapenc:string" xsi:nil="true"/>
                      <custom6 xsi:type="soapenc:string" xsi:nil="true"/>
                      <custom7 xsi:type="soapenc:string" xsi:nil="true"/>
                      <custom8 xsi:type="soapenc:string" xsi:nil="true"/>
                      <custom9 xsi:type="soapenc:string" xsi:nil="true"/>
                      <customsDocumentationRequired xsi:type="xsd:boolean">false</customsDocumentationRequired>
                      <cutOffDate xsi:type="xsd:dateTime" xsi:nil="true"/>
                      <despatchDate xsi:type="xsd:dateTime" xsi:nil="true"/>
                      <earliestDeliveryDate xsi:type="xsd:dateTime" xsi:nil="true"/>
                      <endVatNumber xsi:type="soapenc:string" xsi:nil="true"/>
                      <fragileGoodsFlag xsi:type="xsd:boolean">false</fragileGoodsFlag>
                      <guaranteedDeliveryDate xsi:type="xsd:dateTime" xsi:nil="true"/>
                      <hazardousGoodsFlag xsi:type="xsd:boolean">false</hazardousGoodsFlag>
                      <insuranceValue xsi:type="xsd:double">0.0</insuranceValue>
                      <insuranceValueCurrencyCode xsi:type="soapenc:string" xsi:nil="true"/>
                      <insuranceValueCurrencyRate xsi:type="xsd:double">0.0</insuranceValueCurrencyRate>
                      <languageCode xsi:type="soapenc:string" xsi:nil="true"/>
                      <liquidGoodsFlag xsi:type="xsd:boolean">false</liquidGoodsFlag>
                      <manifestGroupCode xsi:type="soapenc:string" xsi:nil="true"/>
                      <maxDimension xsi:type="xsd:double">0</maxDimension>
                      <metaCampaignKey xsi:type="soapenc:string" xsi:nil="true"/>
                      <metaCustomerKey xsi:type="soapenc:string" xsi:nil="true"/>
                      <moreThanOneMetreGoodsFlag xsi:type="xsd:boolean">false</moreThanOneMetreGoodsFlag>
                      <moreThanTwentyFiveKgGoodsFlag xsi:type="xsd:boolean">false</moreThanTwentyFiveKgGoodsFlag>
                      <orderDate xsi:type="xsd:dateTime" xsi:nil="true"/>
                      <orderNumber xsi:type="soapenc:string">T4RE345A</orderNumber>
                      <orderValue xsi:type="xsd:double">100</orderValue>
                      <parcelCount xsi:type="xsd:int">2</parcelCount>
                      <parcels soapenc:arrayType="ns2:Parcel[1]" xsi:type="soapenc:Array">
                         <parcels xsi:type="ns2:Parcel">
                            <cartonId xsi:type="soapenc:string">08K02JTY8</cartonId>
                            <code xsi:type="soapenc:string" xsi:nil="true"/>
                            <destinationReference xsi:type="soapenc:string" xsi:nil="true"/>
                           <dutyPaid xsi:type="xsd:double">0.0</dutyPaid>
                            <number xsi:type="xsd:int">1</number>
                            <originReference xsi:type="soapenc:string" xsi:nil="true"/>
                            <outerConsignmentCode xsi:type="soapenc:string" xsi:nil="true"/>
                            <outerParcelNumber xsi:type="xsd:int">0</outerParcelNumber>
                            <parcelDepth xsi:type="xsd:double">1.0</parcelDepth>
                            <parcelHeight xsi:type="xsd:double">2.0</parcelHeight>
                            <parcelValue xsi:type="xsd:double">300</parcelValue>
                            <parcelWeight xsi:type="xsd:double">2.0</parcelWeight>
                            <parcelWidth xsi:type="xsd:double">3.2</parcelWidth>
                           <products soapenc:arrayType="ns2:Product[1]" xsi:type="soapenc:Array">
                               <products xsi:type="ns2:Product">
                                  <countryOfOrigin xsi:type="soapenc:string">GBR</countryOfOrigin>
                                  <fabricContent xsi:type="soapenc:string">1</fabricContent>
                                  <harmonisedProductCode xsi:type="soapenc:string">1</harmonisedProductCode>
                                  <miscellaneousInfo xsi:type="soapenc:Array" xsi:nil="true"/>
                                  <productCode xsi:type="soapenc:string">1</productCode>
                                  <productDescription xsi:type="soapenc:string">1</productDescription>
                                  <productQuantity xsi:type="xsd:long">1</productQuantity>
                                  <productTypeDescription xsi:type="soapenc:string">1</productTypeDescription>
                                  <totalProductValue xsi:type="xsd:double">15</totalProductValue>
                                  <unitProductWeight xsi:type="xsd:double">1.0</unitProductWeight>
                               </products>
                            </products>
                            <recipientReference xsi:type="soapenc:string" xsi:nil="true"/>
                            <reference xsi:type="soapenc:string" xsi:nil="true"/>
                            <senderReference xsi:type="soapenc:string" xsi:nil="true"/>
                            <trackingCode xsi:type="soapenc:string" xsi:nil="true"/>
                            <trackingUrl xsi:type="soapenc:string" xsi:nil="true"/>
                         </parcels>
                         <parcels xsi:type="ns2:Parcel">
                            <cartonId xsi:type="soapenc:string">08K02JTY8</cartonId>
                            <code xsi:type="soapenc:string" xsi:nil="true"/>
                            <destinationReference xsi:type="soapenc:string" xsi:nil="true"/>
                            <dutyPaid xsi:type="xsd:double">0.0</dutyPaid>
                            <number xsi:type="xsd:int">1</number>
                            <originReference xsi:type="soapenc:string" xsi:nil="true"/>
                            <outerConsignmentCode xsi:type="soapenc:string" xsi:nil="true"/>
                            <outerParcelNumber xsi:type="xsd:int">0</outerParcelNumber>
                            <parcelDepth xsi:type="xsd:double">1.0</parcelDepth>
                            <parcelHeight xsi:type="xsd:double">2.0</parcelHeight>
                            <parcelValue xsi:type="xsd:double">350</parcelValue>
                            <parcelWeight xsi:type="xsd:double">2.0</parcelWeight>
                            <parcelWidth xsi:type="xsd:double">3.2</parcelWidth>
                            <products soapenc:arrayType="ns2:Product[1]" xsi:type="soapenc:Array">
                               <products xsi:type="ns2:Product">
                                  <countryOfOrigin xsi:type="soapenc:string">GBR</countryOfOrigin>
                                  <fabricContent xsi:type="soapenc:string">1</fabricContent>
                                  <harmonisedProductCode xsi:type="soapenc:string">1</harmonisedProductCode>
                                  <miscellaneousInfo xsi:type="soapenc:Array" xsi:nil="true"/>
                                  <productCode xsi:type="soapenc:string">1</productCode>
                                  <productDescription xsi:type="soapenc:string">1</productDescription>
                                  <productQuantity xsi:type="xsd:long">1</productQuantity>
                                  <productTypeDescription xsi:type="soapenc:string">1</productTypeDescription>
                                  <totalProductValue xsi:type="xsd:double">15</totalProductValue>
                                  <unitProductWeight xsi:type="xsd:double">1.0</unitProductWeight>
                               </products>
                            </products>
                            <recipientReference xsi:type="soapenc:string" xsi:nil="true"/>
                            <reference xsi:type="soapenc:string" xsi:nil="true"/>
                            <senderReference xsi:type="soapenc:string" xsi:nil="true"/>
                            <trackingCode xsi:type="soapenc:string" xsi:nil="true"/>
                            <trackingUrl xsi:type="soapenc:string" xsi:nil="true"/>
                         </parcels>
                      </parcels>
                      <pickTicketNumber xsi:type="soapenc:string" xsi:nil="true"/>
                      <pickupPoint xsi:type="soapenc:string" xsi:nil="true"/>
                      <podRequired xsi:type="soapenc:string">any</podRequired>
                      <properties soapenc:arrayType="ns2:Property[0]" xsi:type="soapenc:Array"/>
                      <recipientAddress xsi:type="ns2:Address">
                         <companyName xsi:type="soapenc:string" xsi:nil="true"/>
                         <countryCode xsi:type="soapenc:string">USA</countryCode>
                         <floor xsi:type="soapenc:string" xsi:nil="true"/>
                         <line1 xsi:type="soapenc:string">500 Crawford Street</line1>
                         <line2 xsi:type="soapenc:string">Apartment 221</line2>
                         <line3 xsi:type="soapenc:string">Houston</line3>
                         <line4 xsi:type="soapenc:string">Texas</line4>
                         <postCode xsi:type="soapenc:string">77002</postCode>
                         <region xsi:type="soapenc:string" xsi:nil="true"/>
                         <streetName xsi:type="soapenc:string" xsi:nil="true"/>
                         <streetNo xsi:type="soapenc:string" xsi:nil="true"/>
                         <streetType xsi:type="soapenc:string" xsi:nil="true"/>
                         <town xsi:type="soapenc:string" xsi:nil="true"/>
                         <type xsi:type="soapenc:string" xsi:nil="true"/>
                      </recipientAddress>
                      <recipientCode xsi:type="soapenc:string" xsi:nil="true"/>
                      <recipientContactPhone xsi:type="soapenc:string">4242258836</recipientContactPhone>
                      <recipientEmail xsi:type="soapenc:string">peter.mcgee@metapack.com</recipientEmail>
                      <recipientMobilePhone xsi:type="soapenc:string">01211554975</recipientMobilePhone>
                      <recipientName xsi:type="soapenc:string">Peter McGee</recipientName>
                      <recipientNotificationType xsi:type="soapenc:string">N</recipientNotificationType>
                      <recipientPhone xsi:type="soapenc:string">4242258836</recipientPhone>
                      <recipientTimeZone xsi:type="soapenc:string">Europe/London</recipientTimeZone>
                      <recipientVatNumber xsi:type="soapenc:string">123456789</recipientVatNumber>
                      <returnAddress xsi:type="ns2:Address">
                         <companyName xsi:type="soapenc:string" xsi:nil="true"/>
                         <countryCode xsi:type="soapenc:string" xsi:nil="true"/>
                         <floor xsi:type="soapenc:string" xsi:nil="true"/>
                         <line1 xsi:type="soapenc:string" xsi:nil="true"/>
                         <line2 xsi:type="soapenc:string" xsi:nil="true"/>
                         <line3 xsi:type="soapenc:string" xsi:nil="true"/>
                         <line4 xsi:type="soapenc:string" xsi:nil="true"/>
                         <postCode xsi:type="soapenc:string" xsi:nil="true"/>
                         <region xsi:type="soapenc:string" xsi:nil="true"/>
                         <streetName xsi:type="soapenc:string" xsi:nil="true"/>
                         <streetNo xsi:type="soapenc:string" xsi:nil="true"/>
                         <streetType xsi:type="soapenc:string" xsi:nil="true"/>
                         <town xsi:type="soapenc:string" xsi:nil="true"/>
                         <type xsi:type="soapenc:string" xsi:nil="true"/>
                      </returnAddress>
                       <senderAddress xsi:type="ns2:Address">
                  <companyName xsi:type="soapenc:string">Default</companyName>
                  <countryCode xsi:type="soapenc:string">GBR</countryCode>
                  <floor xsi:type="soapenc:string" xsi:nil="true"/>
                  <line1 xsi:type="soapenc:string">Line 1</line1>
                  <line2 xsi:type="soapenc:string">Line2</line2>
                  <line3 xsi:type="soapenc:string">Line3`</line3>
                  <line4 xsi:type="soapenc:string">Line4</line4>
                  <postCode xsi:type="soapenc:string">ME11JT</postCode>
                  <region xsi:type="soapenc:string" xsi:nil="true">HR region</region>
                  <streetName xsi:type="soapenc:string" xsi:nil="true">Laystall Street</streetName>
                  <streetNo xsi:type="soapenc:string" xsi:nil="true">12-16</streetNo>
                  <streetType xsi:type="soapenc:string" xsi:nil="true">Business</streetType>
                  <town xsi:type="soapenc:string" xsi:nil="true">Eltham</town>
                  <type xsi:type="soapenc:string">Business</type>
               </senderAddress>
               <senderCode xsi:type="soapenc:string">READING1</senderCode>
               <senderContactPhone xsi:type="soapenc:string">21323545</senderContactPhone>
               <senderEmail xsi:type="soapenc:string">sandra.demenezes@metapack.com</senderEmail>
                      <senderName xsi:type="soapenc:string">Westcoast</senderName>
                      <senderNotificationType xsi:type="soapenc:string" xsi:nil="true"/>
                      <senderPhone xsi:type="soapenc:string" xsi:nil="true"/>
                      <senderTimeZone xsi:type="soapenc:string">Europe/London</senderTimeZone>
                      <startVatNumber xsi:type="soapenc:string" xsi:nil="true"/>
                      <shipmentTypeCode xsi:type="soapenc:string" xsi:nil="true"/>
                      <shippingAccount xsi:type="soapenc:string" xsi:nil="true"/>
                      <shippingCharge xsi:type="xsd:double">0.0</shippingCharge>
                      <shippingChargeCurrencyCode xsi:type="soapenc:string" xsi:nil="true"/>
                      <shippingChargeCurrencyRate xsi:type="xsd:double">0.0</shippingChargeCurrencyRate>
                      <shippingCost xsi:type="xsd:double">0.0</shippingCost>
                      <shippingCostCurrencyCode xsi:type="soapenc:string" xsi:nil="true"/>
                      <shippingCostCurrencyRate xsi:type="xsd:double">0.0</shippingCostCurrencyRate>
                      <signatoryOnCustoms xsi:type="soapenc:string"/>
                      <specialInstructions1 xsi:type="soapenc:string">Leave in recycling box</specialInstructions1>
                      <specialInstructions2 xsi:type="soapenc:string" xsi:nil="true"/>
                      <startVatNumber xsi:type="soapenc:string" xsi:nil="true"/>
                      <status xsi:type="soapenc:string" xsi:nil="true"/>
                      <taxAndDuty xsi:type="xsd:double">0.0</taxAndDuty>
                      <taxAndDutyCurrencyCode xsi:type="soapenc:string" xsi:nil="true"/>
                      <taxAndDutyCurrencyRate xsi:type="xsd:double">0.0</taxAndDutyCurrencyRate>
                      <taxAndDutyStatusText xsi:type="soapenc:string" xsi:nil="true"/>
                      <taxDutyDeclarationCurrencyCode xsi:type="soapenc:string" xsi:nil="true"/>
                      <termsOfTradeCode xsi:type="soapenc:string" xsi:nil="true"/>
                      <transactionType xsi:type="soapenc:string">Delivery</transactionType>
                      <twoManLiftFlag xsi:type="xsd:boolean">false</twoManLiftFlag>
               </consignment>
         <bookingCode xsi:type="soapenc:string">@48</bookingCode>
         <calculateTaxAndDuty xsi:type="xsd:boolean">false</calculateTaxAndDuty>
       <parameters xmlns:tns="http://schemas.xmlsoap.org/soap/envelope/">
            <Property>
               <propertyName>type</propertyName>
               <propertyValue>all</propertyValue>
            </Property>
            <Property>
               <propertyName>format</propertyName>
               <propertyValue>pdf</propertyValue>
            </Property>
            <Property>
               <propertyName>dimension</propertyName>
               <propertyValue>a4</propertyValue>
            </Property>
         </parameters>
      </ser:despatchConsignmentWithBookingCode>
   </soapenv:Body>
</soapenv:Envelope>

For an example response and how to process the information, see below.

Example Response

Carrier routing properties are returned for the allocated consignment, to help you plan your deliveries and keep your consumers updated, together with the encoded string(s) that allows you to generate the necessary paperwork:

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
   <soapenv:Body>
      <ns1:despatchConsignmentWithBookingCodeResponse soapenv:encodingStyle="http://schemas.xmlsoap.org/soap/encoding/" xmlns:ns1="urn:DeliveryManager/services">
         <despatchConsignmentWithBookingCodeReturn xsi:type="ns2:DespatchedConsignment" xmlns:ns2="urn:DeliveryManager/types">
            <consignment xsi:type="ns2:Consignment">
               <measurementUnits xsi:type="ns2:MeasurementUnits">
                  <weight xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">lb</weight>
                  <length xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">in</length>
                  <volume xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">oz</volume>
               </measurementUnits>
               <CODAmount xsi:type="xsd:double">650.0</CODAmount>
               <CODFlag xsi:type="xsd:boolean">false</CODFlag>
               <CODPaymentTypeCode xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">CAS</CODPaymentTypeCode>
               <CODSpecialInstruction xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <CODSurcharge xsi:type="xsd:double">0.0</CODSurcharge>
               <alreadyPalletisedGoodsFlag xsi:type="xsd:boolean">false</alreadyPalletisedGoodsFlag>
               <cardNumber xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <carrierCode xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">ROYALMAILTRKNOOBA</carrierCode>
               <carrierConsignmentCode xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">9990000011251999</carrierConsignmentCode>
               <carrierName xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Royal Mail Tracked non-OBA</carrierName>
               <carrierServiceCode xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">RMTRACKEDSTDNOSIGRTN</carrierServiceCode>
               <carrierServiceName xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Tracked Returns 48</carrierServiceName>
               <carrierServiceVATRate xsi:type="xsd:double">0.0</carrierServiceVATRate>
               <cartonNumber xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <cashOnDeliveryCurrency xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">GBP</cashOnDeliveryCurrency>
               <committedCollectionWindow xsi:type="ns2:DateRange" xsi:nil="true"/>
               <committedDeliveryWindow xsi:type="ns2:DateRange" xsi:nil="true"/>
               <consDestinationReference xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <consOriginReference xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <consRecipientReference xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <consReference xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <consSenderReference xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <consignmentCode xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">DMC4BY1V5GA6</consignmentCode>
               <consignmentLevelDetailsFlag xsi:type="xsd:boolean">false</consignmentLevelDetailsFlag>
               <consignmentValue xsi:type="xsd:double">650.0</consignmentValue>
               <consignmentValueCurrencyCode xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">GBP</consignmentValueCurrencyCode>
               <consignmentValueCurrencyRate xsi:type="xsd:double">1.0</consignmentValueCurrencyRate>
               <consignmentWeight xsi:type="xsd:double">4.0</consignmentWeight>
               <custom1 xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <custom10 xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <custom2 xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <custom3 xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <custom4 xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <custom5 xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <custom6 xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <custom7 xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <custom8 xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <custom9 xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <customsDocumentationRequired xsi:type="xsd:boolean">true</customsDocumentationRequired>
               <cutOffDate xsi:type="xsd:dateTime">2020-08-21T17:00:00.000Z</cutOffDate>
               <despatchDate xsi:type="xsd:dateTime">2020-08-21T17:30:00.000Z</despatchDate>
               <earliestDeliveryDate xsi:type="xsd:dateTime">2020-08-22T11:31:00.000Z</earliestDeliveryDate>
               <endVatNumber xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">123456789</endVatNumber>
               <fragileGoodsFlag xsi:type="xsd:boolean">false</fragileGoodsFlag>
               <guaranteedDeliveryDate xsi:type="xsd:dateTime">2020-08-25T22:00:59.999Z</guaranteedDeliveryDate>
               <hazardCodes xsi:type="soapenc:Array" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <hazardousGoodsFlag xsi:type="xsd:boolean">false</hazardousGoodsFlag>
               <insuranceValue xsi:type="xsd:double">0.0</insuranceValue>
               <insuranceValueCurrencyCode xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <insuranceValueCurrencyRate xsi:type="xsd:double">0.0</insuranceValueCurrencyRate>
               <languageCode xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">en</languageCode>
               <liquidGoodsFlag xsi:type="xsd:boolean">false</liquidGoodsFlag>
               <manifestGroupCode xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <maxDimension xsi:type="xsd:double">3.2</maxDimension>
               <metaCampaignKey xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <metaCustomerKey xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <moreThanOneMetreGoodsFlag xsi:type="xsd:boolean">false</moreThanOneMetreGoodsFlag>
               <moreThanTwentyFiveKgGoodsFlag xsi:type="xsd:boolean">false</moreThanTwentyFiveKgGoodsFlag>
               <orderDate xsi:type="xsd:dateTime" xsi:nil="true"/>
               <orderNumber xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">T4RE345A</orderNumber>
               <orderValue xsi:type="xsd:double">0.0</orderValue>
               <parcelCount xsi:type="xsd:int">2</parcelCount>
               <parcels soapenc:arrayType="ns2:Parcel[2]" xsi:type="soapenc:Array" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">
                  <parcels xsi:type="ns2:Parcel">
                     <CODParcelAmount xsi:type="xsd:double">0.0</CODParcelAmount>
                     <cartonId xsi:type="soapenc:string">08K02JTY8</cartonId>
                     <code xsi:type="soapenc:string">9990000011251999</code>
                     <destinationReference xsi:type="soapenc:string" xsi:nil="true"/>
                     <dutyPaid xsi:type="xsd:double">0.0</dutyPaid>
                     <number xsi:type="xsd:int">1</number>
                     <originReference xsi:type="soapenc:string" xsi:nil="true"/>
                     <outerConsignmentCode xsi:type="soapenc:string" xsi:nil="true"/>
                     <outerParcelNumber xsi:type="xsd:int">0</outerParcelNumber>
                     <packageTypeCode xsi:type="soapenc:string" xsi:nil="true"/>
                     <parcelDepth xsi:type="xsd:double">1.0</parcelDepth>
                     <parcelHeight xsi:type="xsd:double">2.0</parcelHeight>
                     <parcelPrintStatus xsi:type="soapenc:string">Printed</parcelPrintStatus>
                     <parcelValue xsi:type="xsd:double">300.0</parcelValue>
                     <parcelWeight xsi:type="xsd:double">2.0</parcelWeight>
                     <parcelWidth xsi:type="xsd:double">3.2</parcelWidth>
                     <products soapenc:arrayType="ns2:Product[1]" xsi:type="soapenc:Array">
                        <products xsi:type="ns2:Product">
                           <countryOfOrigin xsi:type="soapenc:string">GBR</countryOfOrigin>
                           <fabricContent xsi:type="soapenc:string">1</fabricContent>
                           <harmonisedProductCode xsi:type="soapenc:string">1</harmonisedProductCode>
                           <miscellaneousInfo xsi:type="soapenc:Array" xsi:nil="true"/>
                           <productCode xsi:type="soapenc:string">1</productCode>
                           <productDescription xsi:type="soapenc:string">1</productDescription>
                           <productQuantity xsi:type="xsd:long">1</productQuantity>
                           <productTypeDescription xsi:type="soapenc:string">1</productTypeDescription>
                           <totalProductValue xsi:type="xsd:double">15.0</totalProductValue>
                           <unitProductWeight xsi:type="xsd:double">1.0</unitProductWeight>
                        </products>
                     </products>
                     <recipientReference xsi:type="soapenc:string" xsi:nil="true"/>
                     <reference xsi:type="soapenc:string" xsi:nil="true"/>
                     <senderReference xsi:type="soapenc:string" xsi:nil="true"/>
                     <trackingCode xsi:type="soapenc:string">9990000011251999</trackingCode>
                     <trackingUrl xsi:type="soapenc:string">http://royalmail.com/portal/rm/track?trackNumber=9990000011251999</trackingUrl>
                  </parcels>
                  <parcels xsi:type="ns2:Parcel">
                     <CODParcelAmount xsi:type="xsd:double">0.0</CODParcelAmount>
                     <cartonId xsi:type="soapenc:string">08K02JTY8</cartonId>
                     <code xsi:type="soapenc:string">9990000011391999</code>
                     <destinationReference xsi:type="soapenc:string" xsi:nil="true"/>
                     <dutyPaid xsi:type="xsd:double">0.0</dutyPaid>
                     <number xsi:type="xsd:int">2</number>
                     <originReference xsi:type="soapenc:string" xsi:nil="true"/>
                     <outerConsignmentCode xsi:type="soapenc:string" xsi:nil="true"/>
                     <outerParcelNumber xsi:type="xsd:int">0</outerParcelNumber>
                     <packageTypeCode xsi:type="soapenc:string" xsi:nil="true"/>
                     <parcelDepth xsi:type="xsd:double">1.0</parcelDepth>
                     <parcelHeight xsi:type="xsd:double">2.0</parcelHeight>
                     <parcelPrintStatus xsi:type="soapenc:string">Printed</parcelPrintStatus>
                     <parcelValue xsi:type="xsd:double">350.0</parcelValue>
                     <parcelWeight xsi:type="xsd:double">2.0</parcelWeight>
                     <parcelWidth xsi:type="xsd:double">3.2</parcelWidth>
                     <products soapenc:arrayType="ns2:Product[1]" xsi:type="soapenc:Array">
                        <products xsi:type="ns2:Product">
                           <countryOfOrigin xsi:type="soapenc:string">GBR</countryOfOrigin>
                           <fabricContent xsi:type="soapenc:string">1</fabricContent>
                           <harmonisedProductCode xsi:type="soapenc:string">1</harmonisedProductCode>
                           <miscellaneousInfo xsi:type="soapenc:Array" xsi:nil="true"/>
                           <productCode xsi:type="soapenc:string">1</productCode>
                           <productDescription xsi:type="soapenc:string">1</productDescription>
                           <productQuantity xsi:type="xsd:long">1</productQuantity>
                           <productTypeDescription xsi:type="soapenc:string">1</productTypeDescription>
                           <totalProductValue xsi:type="xsd:double">15.0</totalProductValue>
                           <unitProductWeight xsi:type="xsd:double">1.0</unitProductWeight>
                        </products>
                     </products>
                     <recipientReference xsi:type="soapenc:string" xsi:nil="true"/>
                     <reference xsi:type="soapenc:string" xsi:nil="true"/>
                     <senderReference xsi:type="soapenc:string" xsi:nil="true"/>
                     <trackingCode xsi:type="soapenc:string">9990000011391999</trackingCode>
                     <trackingUrl xsi:type="soapenc:string">http://royalmail.com/portal/rm/track?trackNumber=9990000011391999</trackingUrl>
                  </parcels>
               </parcels>
               <pickTicketNumber xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <pickupPoint xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <podRequired xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">any</podRequired>
               <properties soapenc:arrayType="ns2:Property[18]" xsi:type="soapenc:Array" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">
                  <properties xsi:type="ns2:Property">
                     <propertyName xsi:type="soapenc:string">route.collection.level5</propertyName>
                     <propertyValue xsi:type="soapenc:string"/>
                  </properties>
                  <properties xsi:type="ns2:Property">
                     <propertyName xsi:type="soapenc:string">route.collection.level4</propertyName>
                     <propertyValue xsi:type="soapenc:string"/>
                  </properties>
                  <properties xsi:type="ns2:Property">
                     <propertyName xsi:type="soapenc:string">carrier.field20</propertyName>
                     <propertyValue xsi:type="soapenc:string">3a6876c3-afad-4382-b156-127318f60731</propertyValue>
                  </properties>
                  <properties xsi:type="ns2:Property">
                     <propertyName xsi:type="soapenc:string">route.collectingdepot.code</propertyName>
                     <propertyValue xsi:type="soapenc:string">002622</propertyValue>
                  </properties>
                  <properties xsi:type="ns2:Property">
                     <propertyName xsi:type="soapenc:string">route.collection.level3</propertyName>
                     <propertyValue xsi:type="soapenc:string"/>
                  </properties>
                  <properties xsi:type="ns2:Property">
                     <propertyName xsi:type="soapenc:string">route.collection.level2</propertyName>
                     <propertyValue xsi:type="soapenc:string">0</propertyValue>
                  </properties>
                  <properties xsi:type="ns2:Property">
                     <propertyName xsi:type="soapenc:string">route.collection.level1</propertyName>
                     <propertyValue xsi:type="soapenc:string">0</propertyValue>
                  </properties>
                  <properties xsi:type="ns2:Property">
                     <propertyName xsi:type="soapenc:string">carrier.manifest.areas</propertyName>
                     <propertyValue xsi:type="soapenc:string">0,0,0</propertyValue>
                  </properties>
                  <properties xsi:type="ns2:Property">
                     <propertyName xsi:type="soapenc:string">allocation.bookingcode</propertyName>
                     <propertyValue xsi:type="soapenc:string">@48</propertyValue>
                  </properties>
                  <properties xsi:type="ns2:Property">
                     <propertyName xsi:type="soapenc:string">route.level5</propertyName>
                     <propertyValue xsi:type="soapenc:string"/>
                  </properties>
                  <properties xsi:type="ns2:Property">
                     <propertyName xsi:type="soapenc:string">route.level4</propertyName>
                     <propertyValue xsi:type="soapenc:string"/>
                  </properties>
                  <properties xsi:type="ns2:Property">
                     <propertyName xsi:type="soapenc:string">route.level3</propertyName>
                     <propertyValue xsi:type="soapenc:string"/>
                  </properties>
                  <properties xsi:type="ns2:Property">
                     <propertyName xsi:type="soapenc:string">route.level2</propertyName>
                     <propertyValue xsi:type="soapenc:string">0</propertyValue>
                  </properties>
                  <properties xsi:type="ns2:Property">
                     <propertyName xsi:type="soapenc:string">route.level1</propertyName>
                     <propertyValue xsi:type="soapenc:string">0</propertyValue>
                  </properties>
                  <properties xsi:type="ns2:Property">
                     <propertyName xsi:type="soapenc:string">carrier.field3</propertyName>
                     <propertyValue xsi:type="soapenc:string"/>
                  </properties>
                  <properties xsi:type="ns2:Property">
                     <propertyName xsi:type="soapenc:string">carrier.field2</propertyName>
                     <propertyValue xsi:type="soapenc:string"/>
                  </properties>
                  <properties xsi:type="ns2:Property">
                     <propertyName xsi:type="soapenc:string">carrier.field1</propertyName>
                     <propertyValue xsi:type="soapenc:string">222</propertyValue>
                  </properties>
                  <properties xsi:type="ns2:Property">
                     <propertyName xsi:type="soapenc:string">route.version</propertyName>
                     <propertyValue xsi:type="soapenc:string">20200723</propertyValue>
                  </properties>
               </properties>
               <recipientAddress xsi:type="ns2:Address">
                  <companyName xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <countryCode xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">USA</countryCode>
                  <floor xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <line1 xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">500 Crawford Street</line1>
                  <line2 xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Apartment 221</line2>
                  <line3 xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Houston</line3>
                  <line4 xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Texas</line4>
                  <postCode xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">77002</postCode>
                  <region xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <streetName xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <streetNo xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <streetType xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <town xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <type xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Business</type>
               </recipientAddress>
               <recipientCode xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <recipientContactPhone xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">4242258836</recipientContactPhone>
               <recipientEmail xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">peter.mcgee@metapack.com</recipientEmail>
               <recipientFirstName xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <recipientLastName xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <recipientMobilePhone xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">01211554975</recipientMobilePhone>
               <recipientName xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Peter McGee</recipientName>
               <recipientNotificationType xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">N</recipientNotificationType>
               <recipientPhone xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">4242258836</recipientPhone>
               <recipientTimeZone xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">America/Chicago</recipientTimeZone>
               <recipientTitle xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <recipientVatNumber xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">123456789</recipientVatNumber>
               <returnAddress xsi:type="ns2:Address">
                  <companyName xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <countryCode xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <floor xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <line1 xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <line2 xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <line3 xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <line4 xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <postCode xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <region xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <streetName xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <streetNo xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <streetType xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <town xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <type xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Business</type>
               </returnAddress>
               <returnEmail xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <returnFirstName xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <returnLastName xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <returnMobile xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <returnName xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <returnPhone xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <returnTitle xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <senderAddress xsi:type="ns2:Address">
                  <companyName xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Default</companyName>
                  <countryCode xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">GBR</countryCode>
                  <floor xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <line1 xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Line 1</line1>
                  <line2 xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Line2</line2>
                  <line3 xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Line3`</line3>
                  <line4 xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Line4</line4>
                  <postCode xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">ME1 1JT</postCode>
                  <region xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <streetName xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <streetNo xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <streetType xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <town xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
                  <type xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Business</type>
               </senderAddress>
               <senderCode xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">READING1</senderCode>
               <senderContactPhone xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">21323545</senderContactPhone>
               <senderEmail xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">sandra.demenezes@metapack.com</senderEmail>
               <senderFirstName xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <senderLastName xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <senderMobilePhone xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <senderName xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Westcoast</senderName>
               <senderNotificationType xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">N</senderNotificationType>
               <senderPhone xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <senderTimeZone xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Europe/London</senderTimeZone>
               <senderTitle xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <startVatNumber xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <shipmentTypeCode xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">MERCHANDISE</shipmentTypeCode>
               <shippingAccount xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <shippingCharge xsi:type="xsd:double">0.0</shippingCharge>
               <shippingChargeCurrencyCode xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <shippingChargeCurrencyRate xsi:type="xsd:double">0.0</shippingChargeCurrencyRate>
               <shippingCost xsi:type="xsd:double">1.25</shippingCost>
               <shippingCostCurrencyCode xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <shippingCostCurrencyRate xsi:type="xsd:double">0.0</shippingCostCurrencyRate>
               <signatoryOnCustoms xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <specialInstructions1 xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Leave in recycling box</specialInstructions1>
               <specialInstructions2 xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <startVatNumber xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <status xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Allocated</status>
               <taxAndDuty xsi:type="xsd:double">0.0</taxAndDuty>
               <taxAndDutyCurrencyCode xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <taxAndDutyCurrencyRate xsi:type="xsd:double">0.0</taxAndDutyCurrencyRate>
               <taxAndDutyStatusText xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <taxDutyDeclarationCurrencyCode xsi:type="soapenc:string" xsi:nil="true" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"/>
               <termsOfTradeCode xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">DAP</termsOfTradeCode>
               <transactionType xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Delivery</transactionType>
               <twoManLiftFlag xsi:type="xsd:boolean">false</twoManLiftFlag>
            </consignment>
            <paperwork xsi:type="ns2:Paperwork">
               <documents xsi:type="soapenc:base64Binary" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">JVBERi0xL.....JUVPRgo=</documents>
               <labels xsi:type="soapenc:base64Binary" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">JVBERi0xL.....RU9GCg==</labels>
            </paperwork>
         </despatchConsignmentWithBookingCodeReturn>
      </ns1:despatchConsignmentWithBookingCodeResponse>
   </soapenv:Body>
</soapenv:Envelope>

Next Steps

You should confirm that the carrier information is as required for the allocated consignment, e.g.

 <carrierCode xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">ROYALMAILTRKNOOBA</carrierCode>
               <carrierConsignmentCode xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">9990000011251999</carrierConsignmentCode>
               <carrierName xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Royal Mail Tracked non-OBA</carrierName>
               <carrierServiceCode xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">RMTRACKEDSTDNOSIGRTN</carrierServiceCode>
               <carrierServiceName xsi:type="soapenc:string" xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/">Tracked Returns 48</carrierServiceName>

If the carrier service is not the one required, then go to Cancel the Allocation. Otherwise, save the response to your database and go to Decode and Print the Labels and Customs Documents.

Cancel the Allocation

Either use the deallocate method, or use the GUI as follows:

  1. Log into the Delivery Manager Delta environment via the user account that was used to run the API:

    https://dm-delta.metapack.com/dm/ActionServlet?action=home

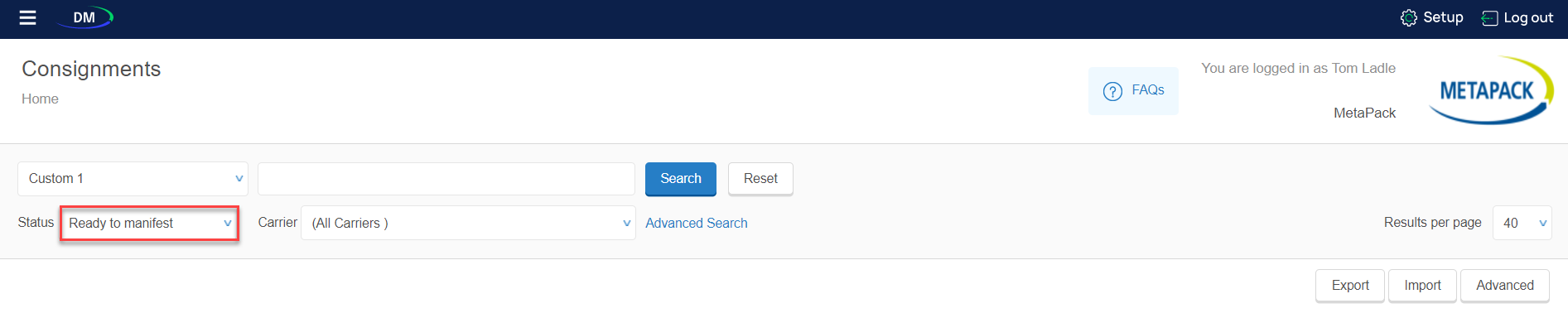

  2. Click Home and then select the Ready to manifest status, followed by Search.

  3. Find the required consignment using the newly generated carrierConsignmentCode, open the consignment, and then click Cancel Allocation.

  4. Once you confirm the deallocation, the consignment is moved to the Unallocated status.

Decode and Print the Labels and Customs Documents

The results are generated in up to two strings at the bottom of the response: a labels string containing the label(s) for each parcel, and a documents string containing the customs documents.

In the example response, the Base64-encoded strings have been truncated for aesthetic purposes.

To generate the labels or documents from the string, you need to copy and load the string into a Base64 decoder. For more information about this, refer to Store the Paperwork and Print Later.
